5730 LED Chip + Plastic Shell LED Driver
Specification:
Product name: 5730SMD LED Chip + Plastic Shell LED Driver
Power: 3W/ 5W/ 7W/ 9W/ 12W/ 15W/ 18W/ 24W
Chip Input: 9-84V
Driver Input: 85-265V
Driver Output: 2-84V
Current: 300mA±5%
Application:
indoor and outdoor lighting, road / lamp, flashlight, lighting, spotlights, buried lights, spot lights.
Note:
LED must be added with a radiator/cooling fan. Ensure that the wire and LED welding temperature is below 85 degrees!
5730 LED Chip + Plastic Shell LED Driver | |||||||

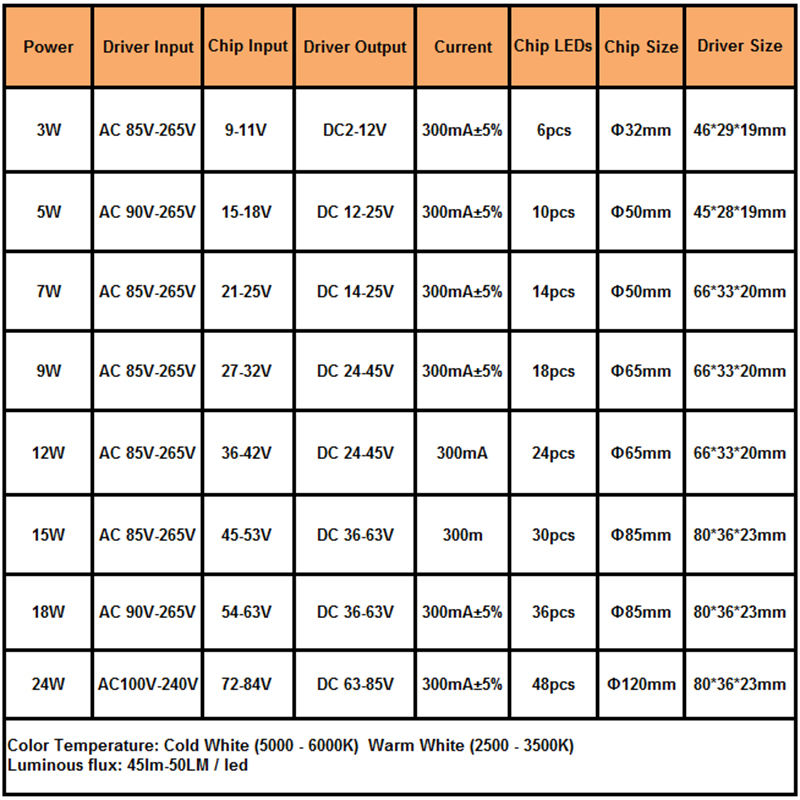

| Power | Driver Input | Chip Input | Driver Output | Current | Chip | Chip Size | Driver Size |

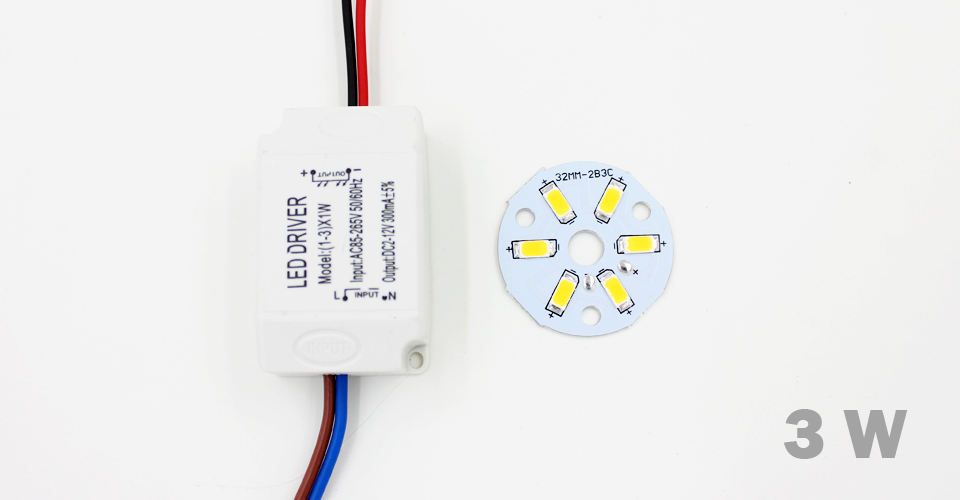

| 3W | AC 85V-265V | 9-11V | DC 2-12V | 300mA±5% | 6pcs | Φ32mm | 46×29×19mm |

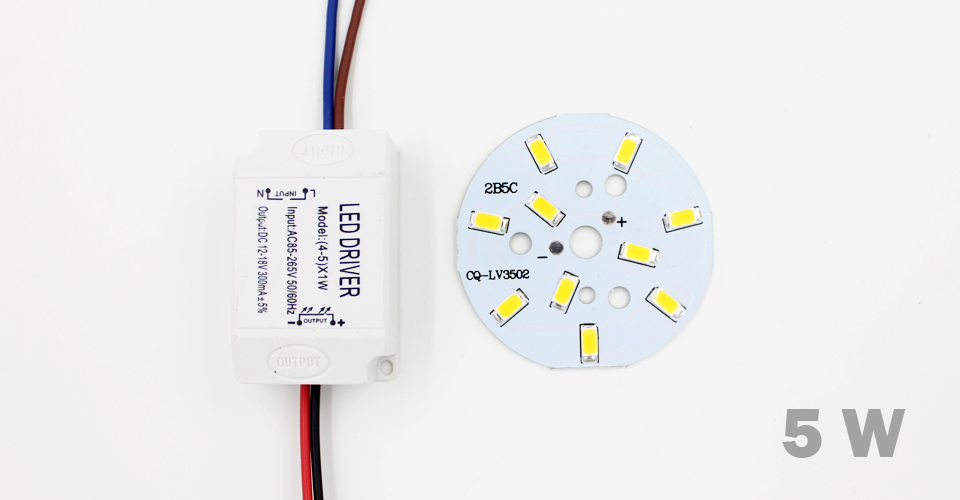

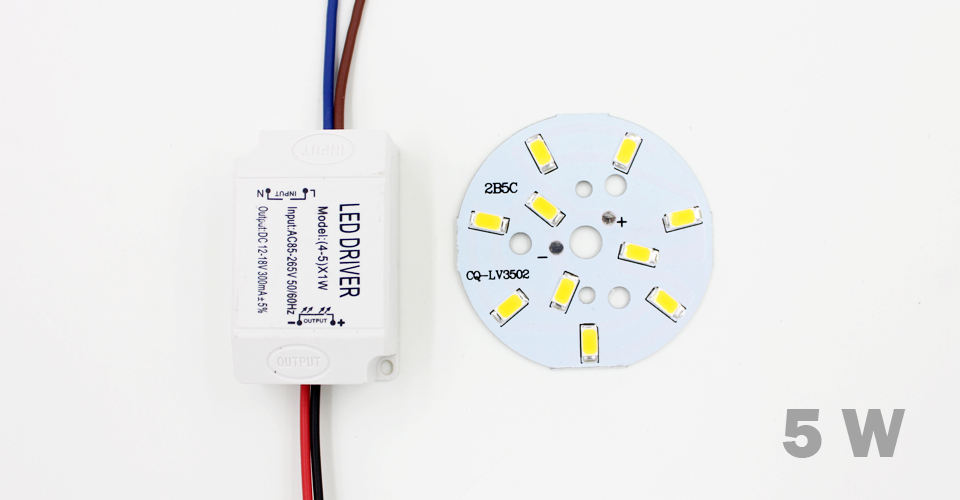

| 5W | AC 85V-265V | 15-18V | DC 10-24V | 300mA±5% | 10pcs | Φ50mm | 68×33×22mm |

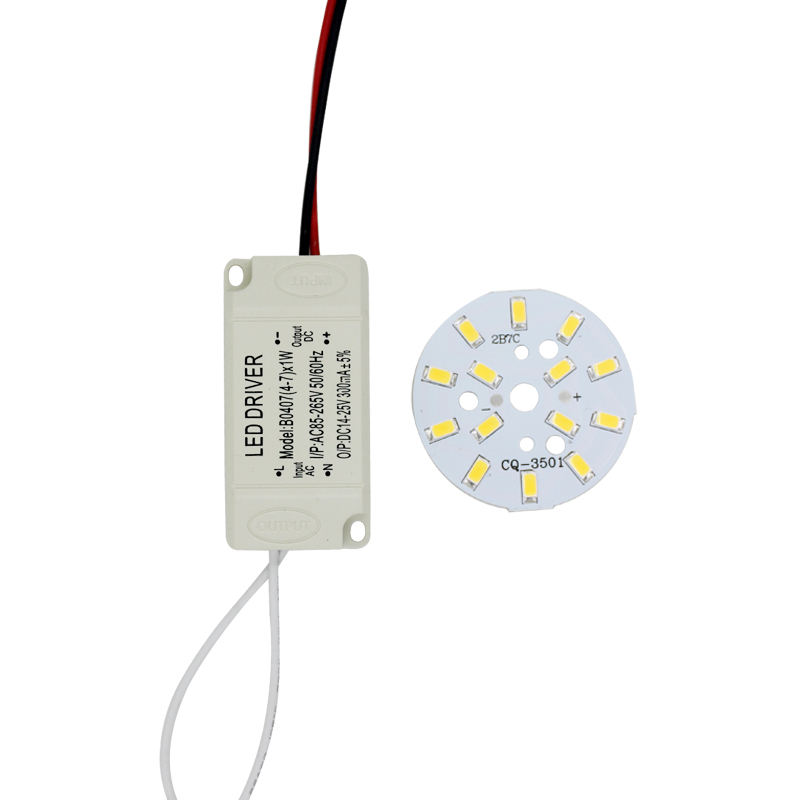

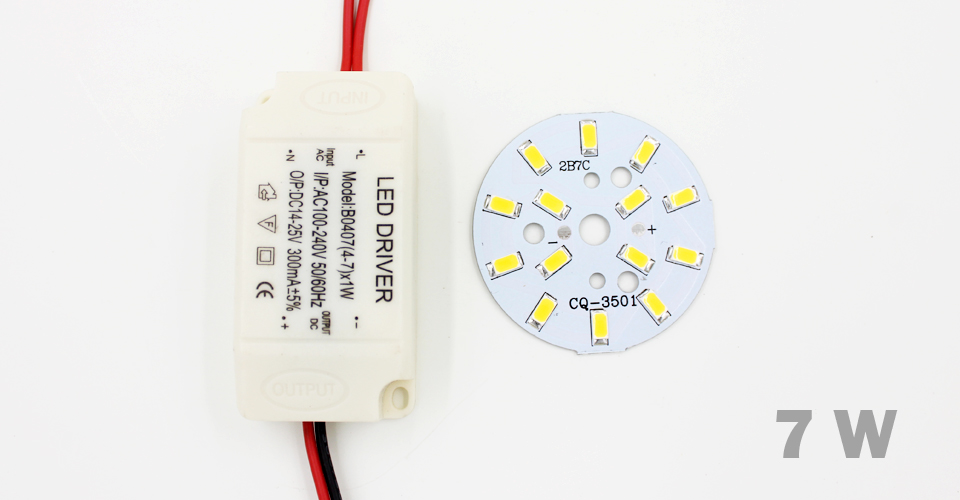

| 7W | AC 85V-265V | 21-25V | DC 14-25V | 300mA±5% | 14pcs | Φ50mm | 66×33×20mm |

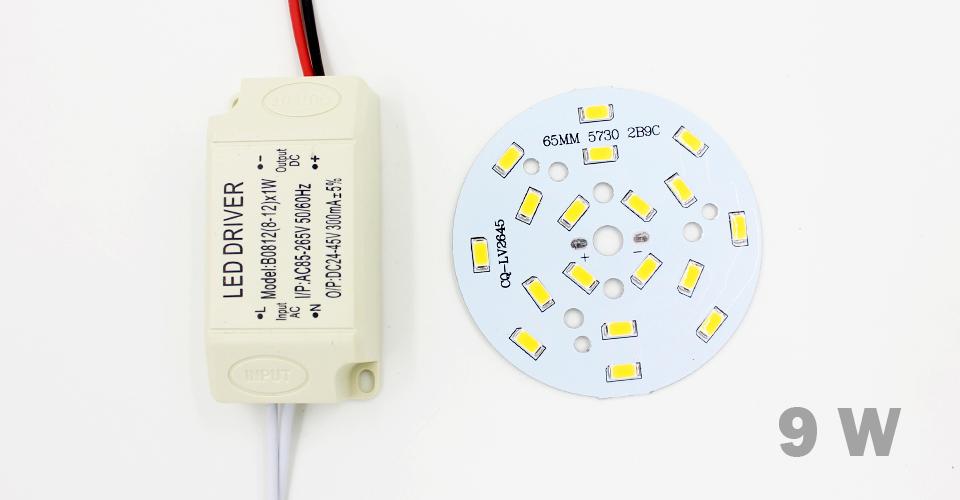

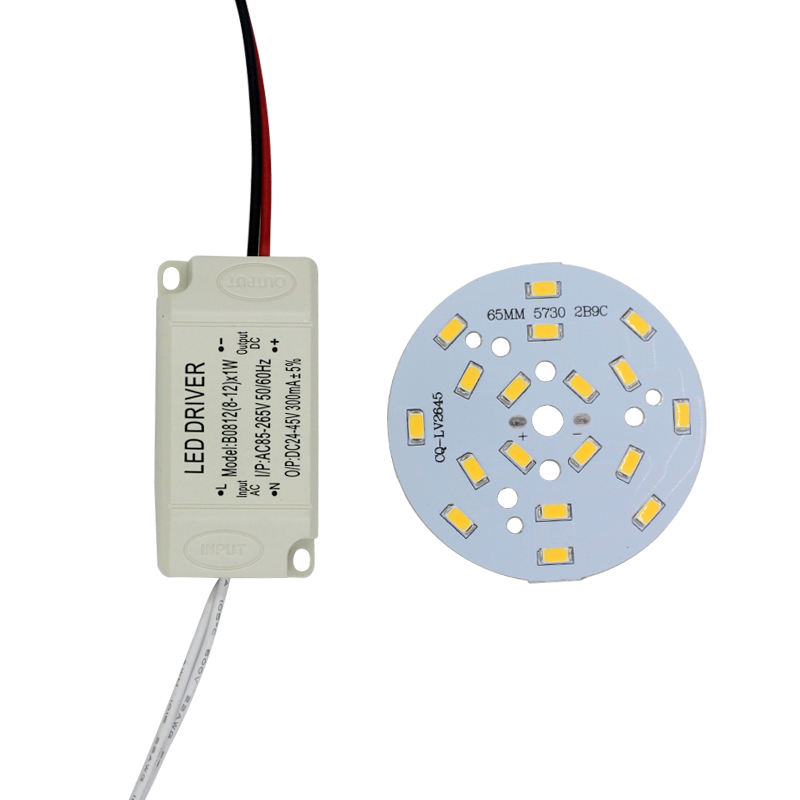

| 9W | AC 85V-265V | 27-32V | DC 24-45V | 300mA±5% | 18pcs | Φ65mm | 66×33×20mm |

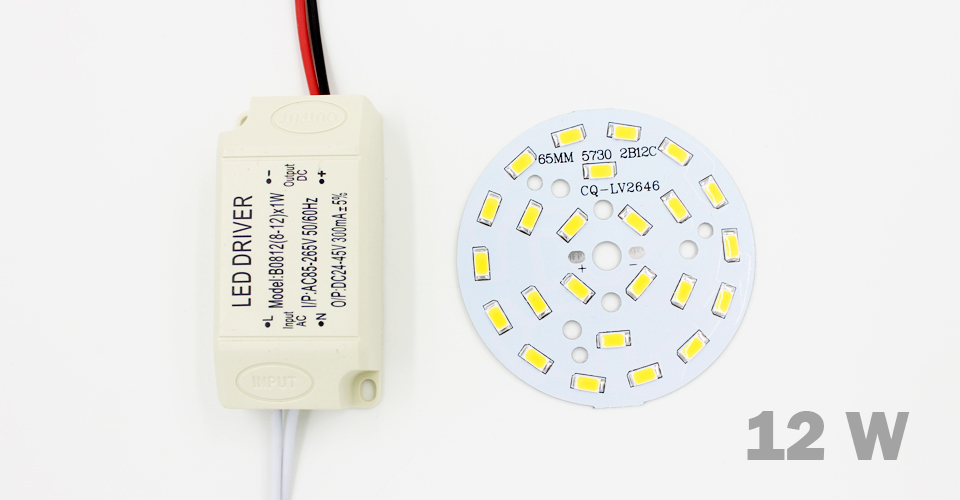

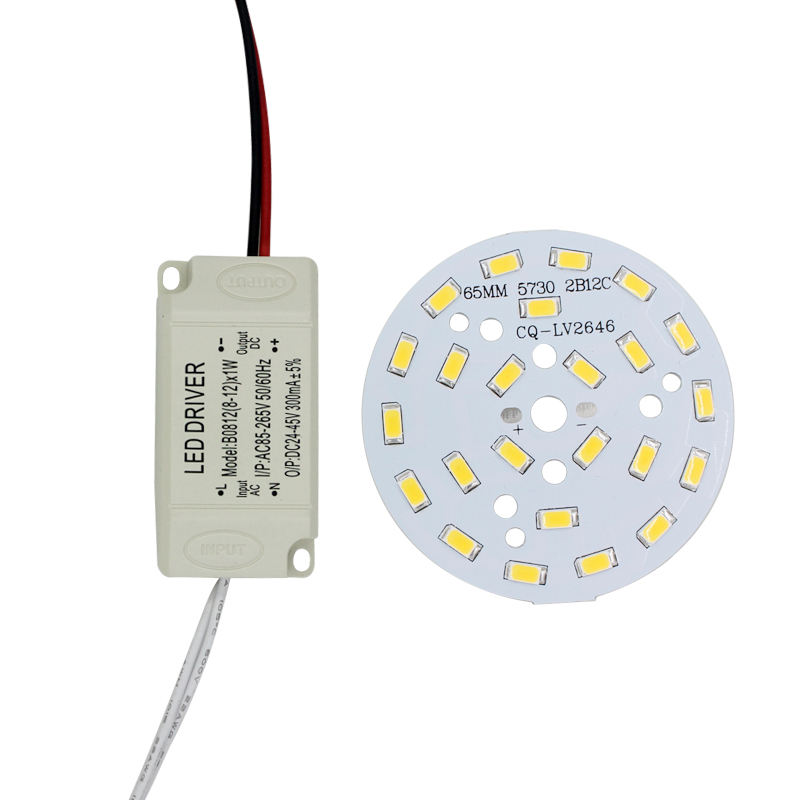

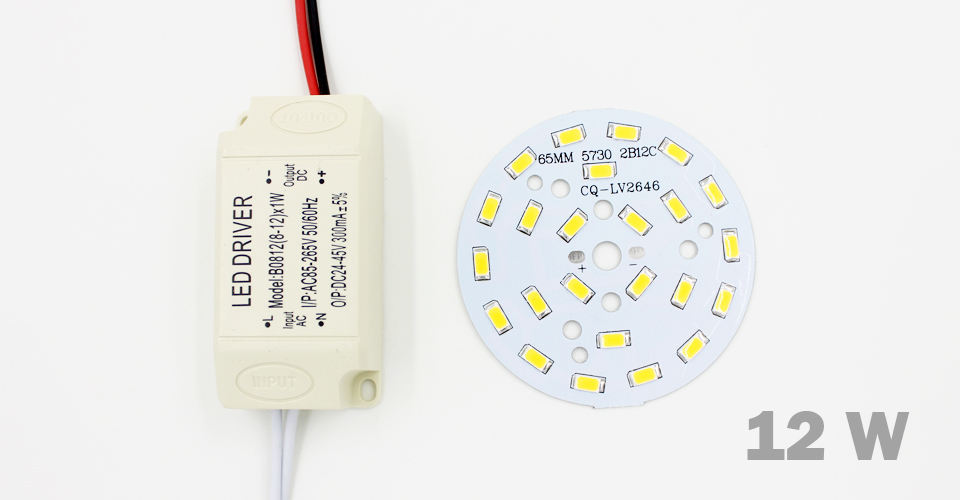

| 12W | AC 85V-265V | 36-42V | DC 24-45V | 300mA | 24pcs | Φ65mm | 66×33×20mm |

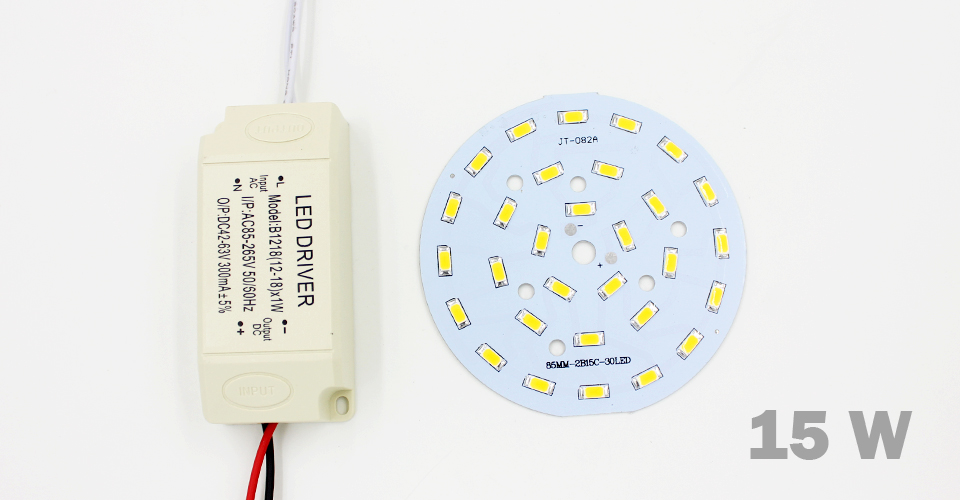

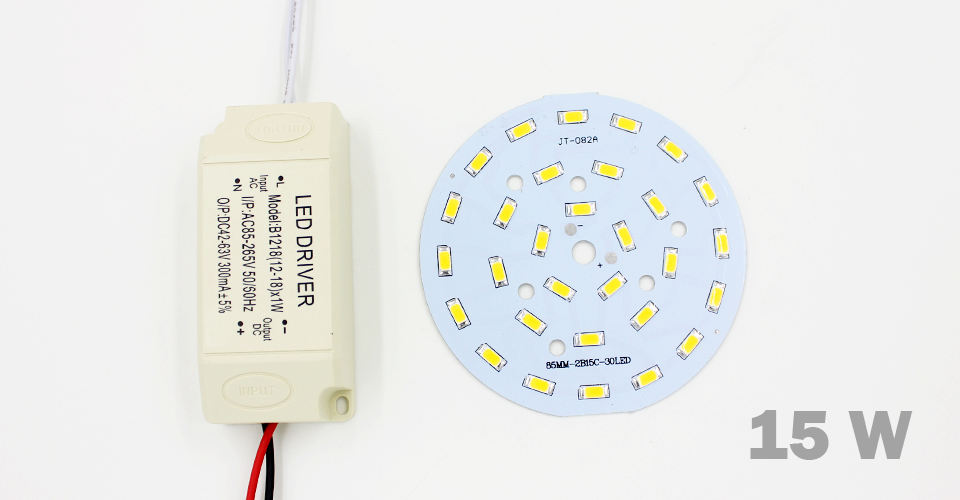

| 15W | AC 85V-265V | 45-53V | DC 36-63V | 300mA | 30pcs | Φ85mm | 80×36×23mm |

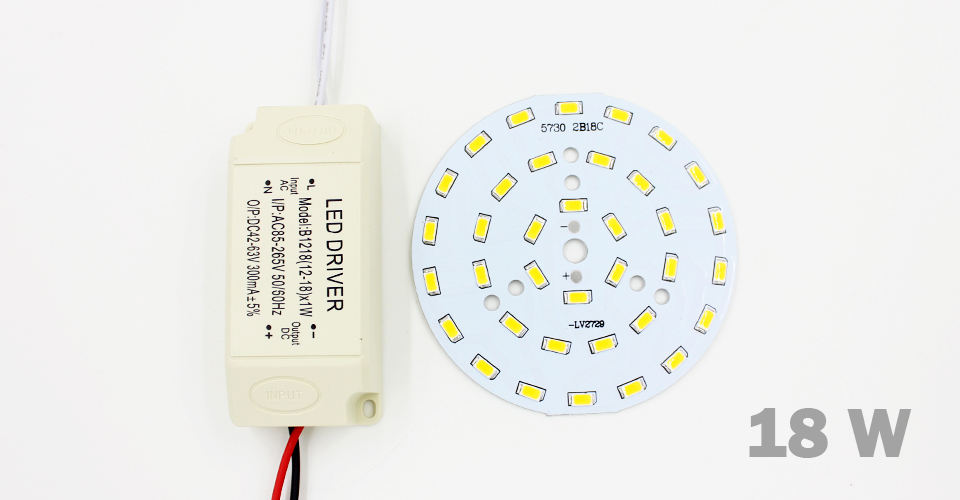

| 18W | AC 90V-265V | 54-63V | DC 36-63V | 300mA±5% | 36pcs | Φ85mm | 80×36×23mm |

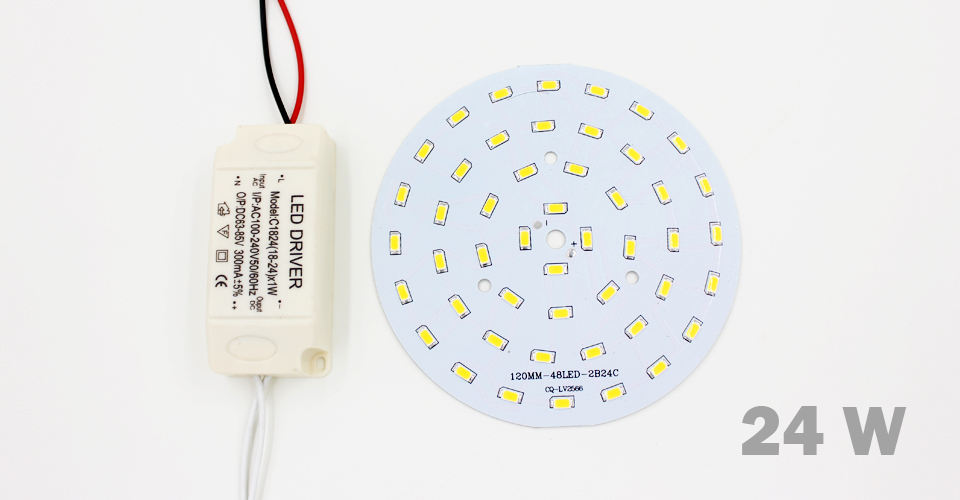

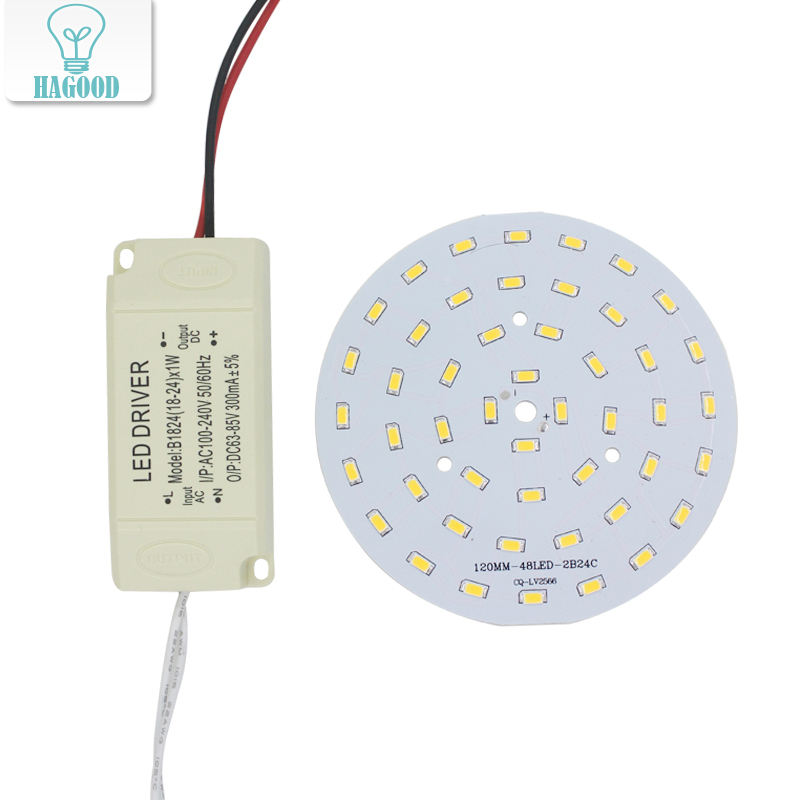

| 24W | AC 100V-240V | 72-84V | DC 63-85V | 300mA±5% | 40pcs | Φ120mm | 80×36×23mm |
| Color Temperature: Cold White (5000 - 6000K) Warm White (2500 - 3500K) Luminous flux: 45lm-50LM / led | |||||||
