3W 5W 7W 9W 12W 18W SMD5730 Warm/Cold White Combined Color panel + Segmented control LED driver power supply for downlight

Specifications:

Item Name : SMD5730 LED Chip

Power : 3W / 5W / 7W / 9W / 2W / 15W / 18W

Input Voltage : AC 90-265V

Current : 280-300mA

LED Chips : SMD 5730 (Epistar)

LED leds:12pcs /20pcs /28pcs /36pcs /48pcs /60pcs /72pcs

Usage : For LED bulb ceiling light downlihgt spotlight Etc

Input Voltage :

3W 9 - 11V * 2

5W 15 - 18V * 2

7W 21 - 25V * 2

9W 27 - 32V * 2

12W 36 - 42V * 2

12W 45 - 53V * 2

12W 54 - 63V * 2

Output Voltage (DC):

3W 9 - 11V * 2

5W 12 - 25V * 2

7W 12 - 25V * 2

9W 24 - 42V * 2

12W 24 - 42V * 2

12W 32 - 63V * 2

12W 32 - 63V * 2

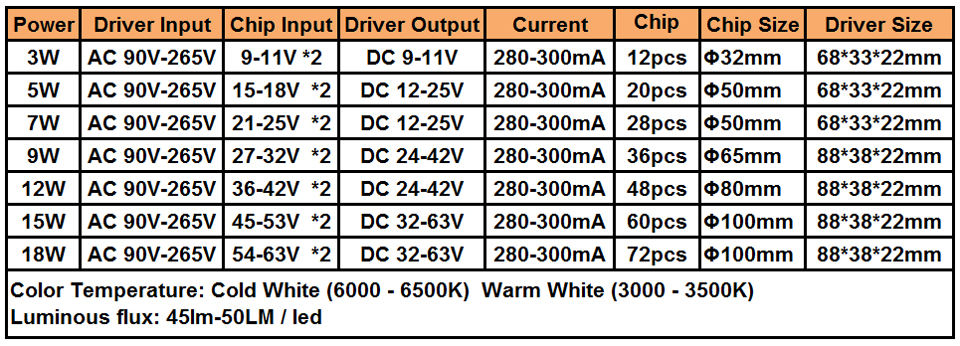

Driver Size:

3W ---- 68*33*22mm

5W ---- 68*33*22mm

7W ---- 68*33*22mm

9W ---- 88*38*22mm

12W ---- 88*38*22mm

15W ---- 88*38*22mm

18W ---- 88*38*22mm

Chip Size:

3W ---- Φ32mm

5W ---- Φ50mm

7W ---- Φ50mm

9W ---- Φ65mm

12W ---- Φ80mm

15W ---- Φ100mm

18W ---- Φ100mm

Note:

(1)LED must be added with a radiator/cooling fan.

(2)Ensure that the wire and LED welding temperature is below 85 degrees!

(3) Cold white LEDs and Warm white LEDs are in one Board.

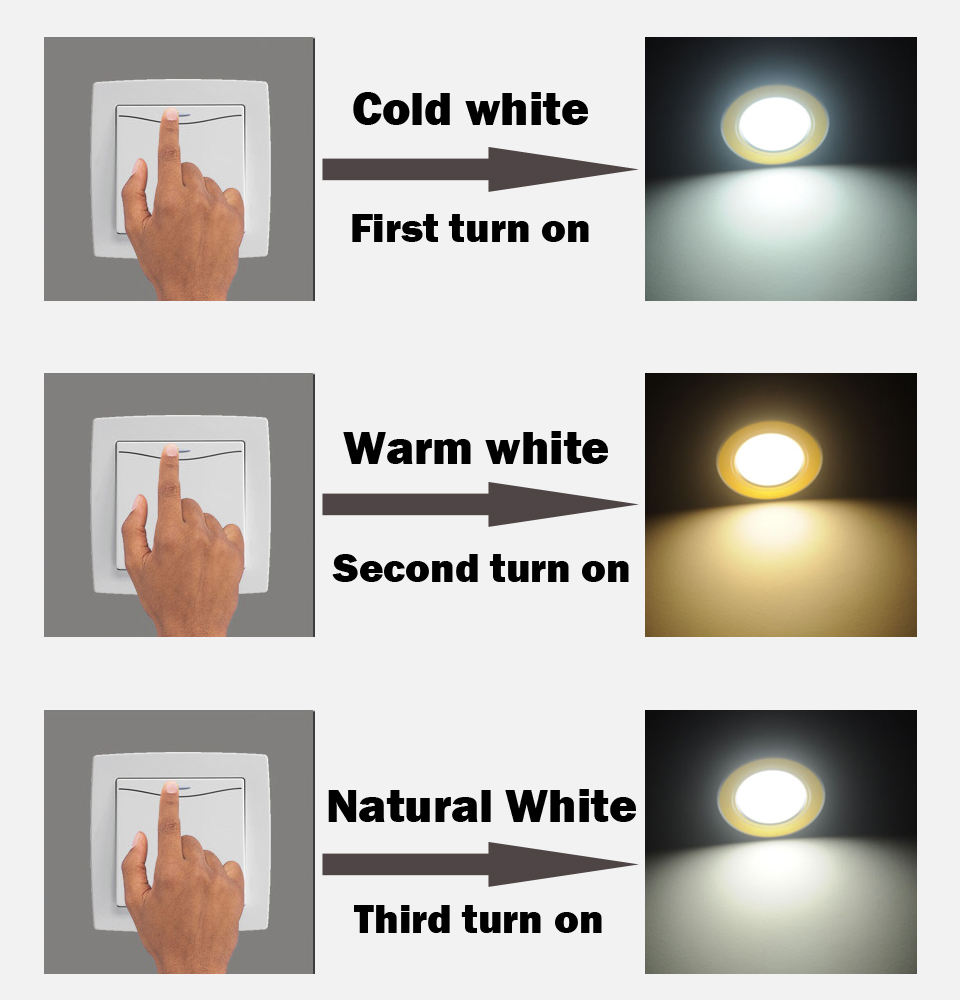

Operation Steps:

(1) First turn on cold white LEDs

(2) Second turn on warm white LEDs

(3)Third turn on all LEDs and you get natural white

Feature:

1. Input directly AC 180-260V ,long lifetime

2. Newest Integrated IC driver progam ,No need driver again

3. Size is small help make Creative Design freely

4. Support SCR dimmers and electronic dimmer

5. Ferequency 90% Super high brightness,Ra 80 good energy saving
