Product Name: Rectangular high-power lamp beads
Power: 12W / 18W / 20W / 24W / 30W / 36W / 48W
Lamp Beads Number: 12pcs / 18pcs / 20pcs / 24pcs / 30pcs / 36pcs / 48pcs
Color: Cold White / Warm White / Blue / Green / Yellow / Red / Purple / Pink
Light Board Material: aluminum
Light Board Color: Black
Input: AC 90-265V
Current: 300mA±5%
Color Temperature: Warm white: 3000K-3400K Cool white: 6000K-6500K
Application
LED lights, street lights, spot lights, fluorescent lights, buried lights, spot lights, DIY lights, etc.
Note
1) 48W high power lamp bead board needs 2×18-24W LED driver or 48W LED driver
2) When testing the lamp bead board, disconnect the power connection and test again to ensure safety.
3) If you have any questions, please contact customer service or leave a message.

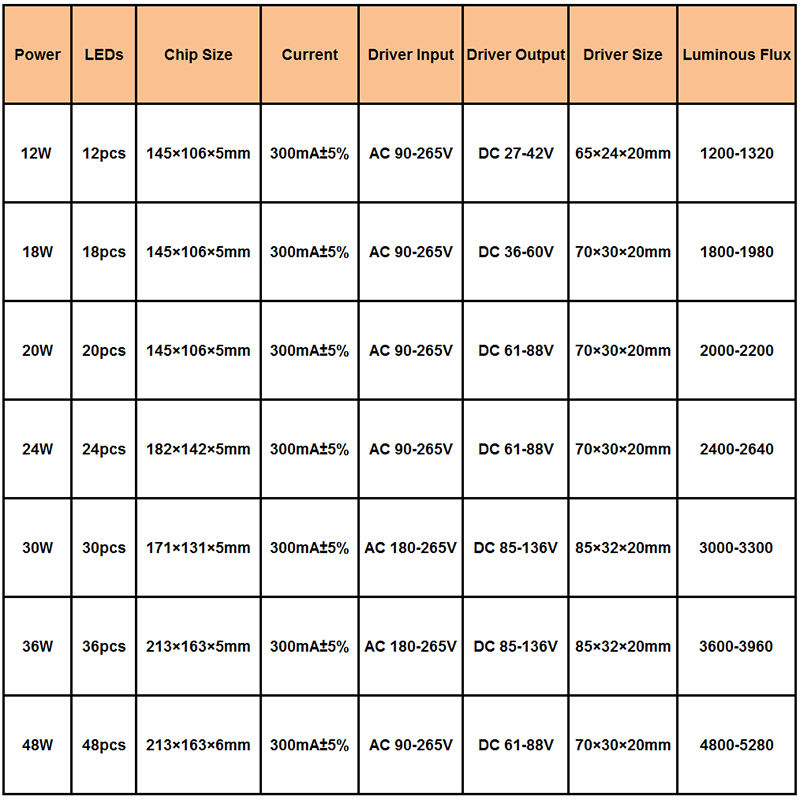

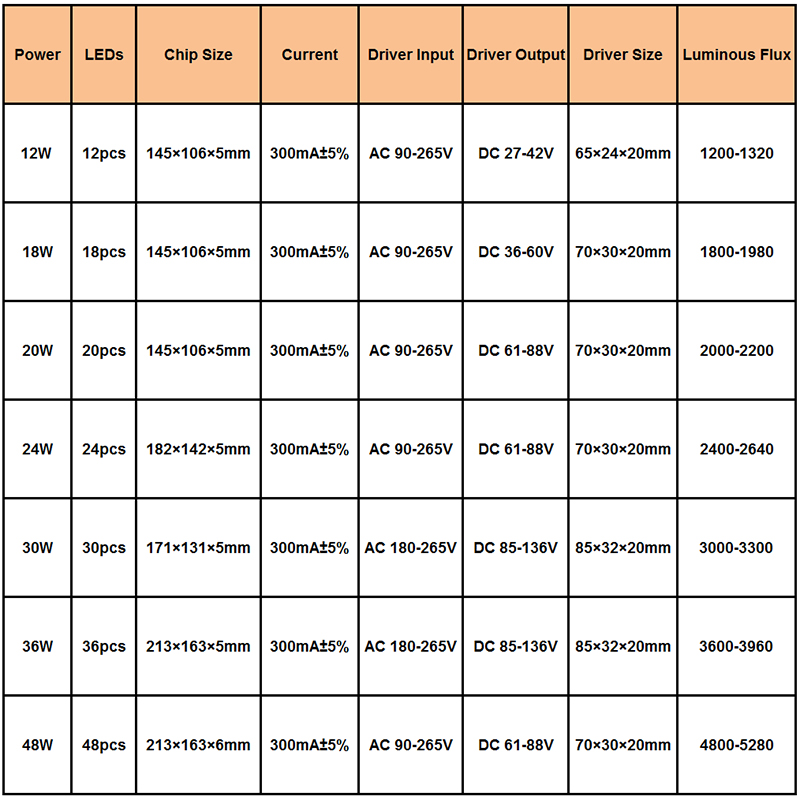

| Power | LEDs | Size(mm) | Current | Driver Input | Driver Output | Driver Output | Luminous Flux |

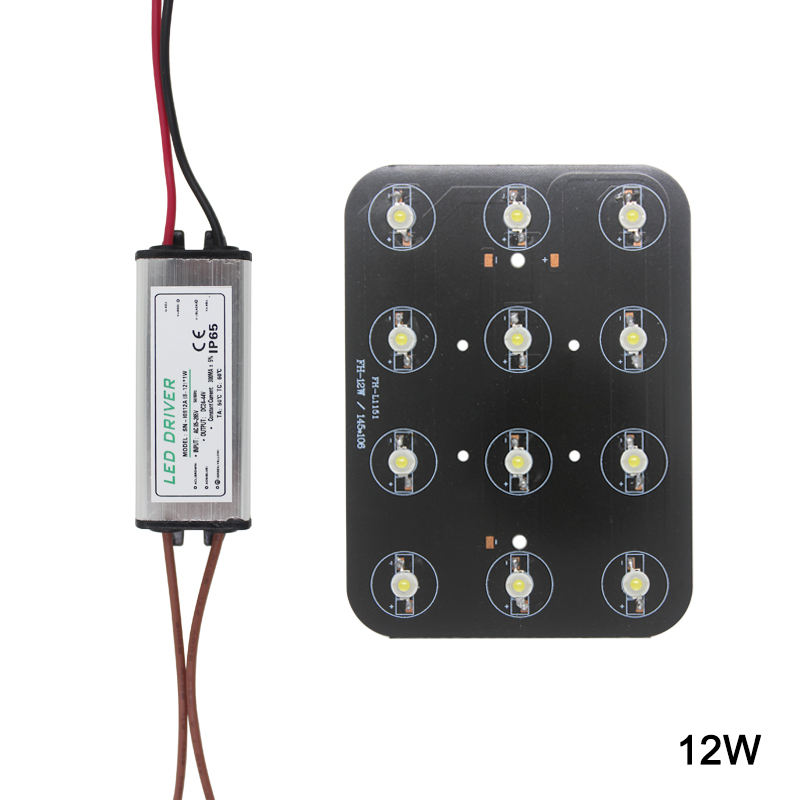

| 12W | 12 pcs | 145×106×5mm | 300mA±5% | AC 90-265V | DC 27-42V | 65×24×20mm | 1200-1320 |

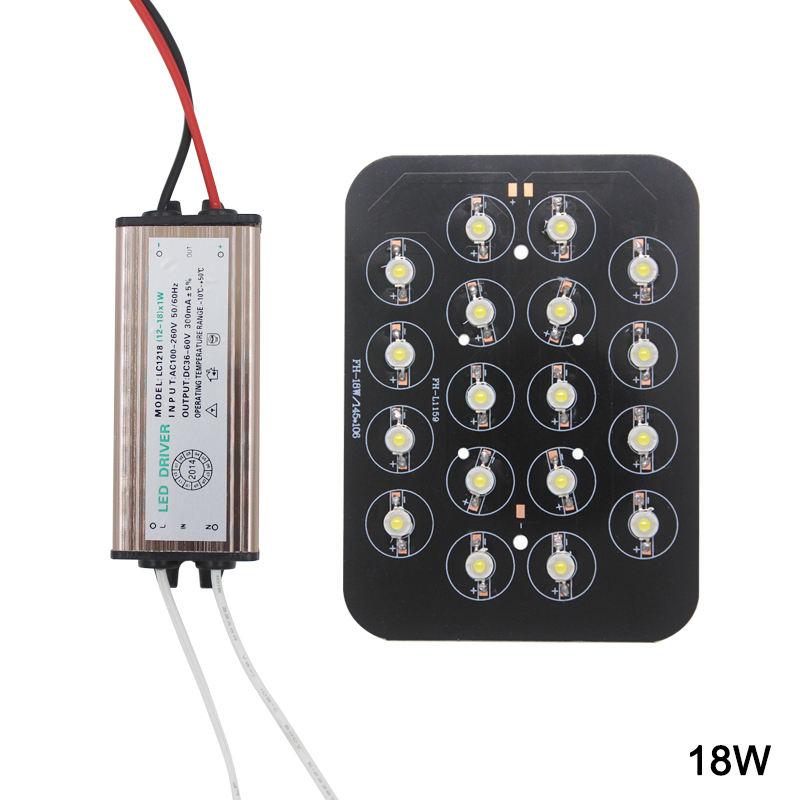

| 18W | 18 pcs | 145×106×5mm | 300mA±5% | AC 90-265V | DC 36-60V | 70×30×20mm | 1800-1980 |

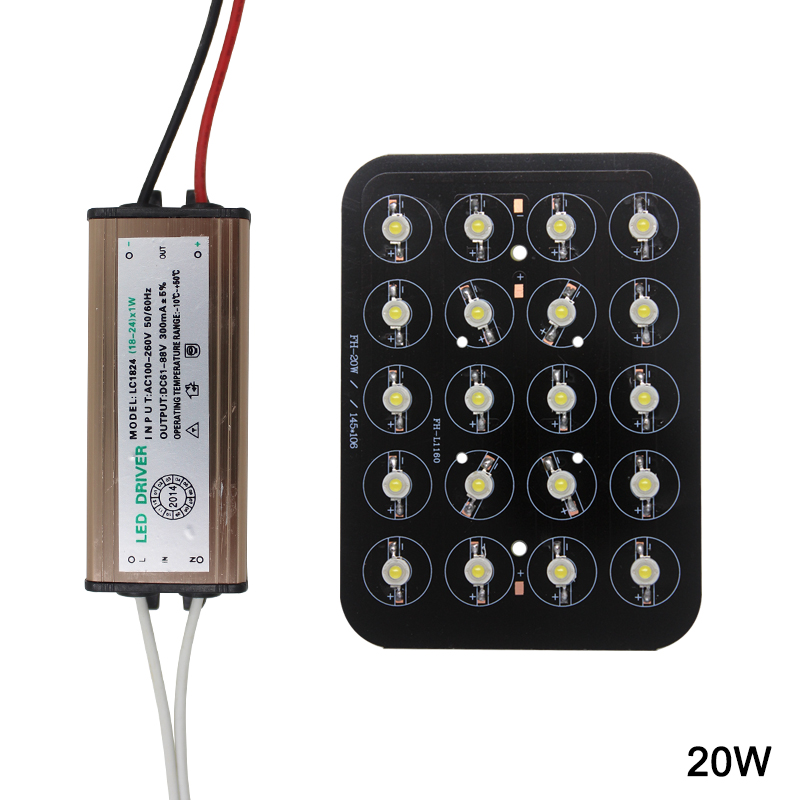

| 20W | 20 pcs | 145×106×5mm | 300mA±5% | AC 90-265V | DC 61-88V | 70×30×20mm | 2000-2200 |

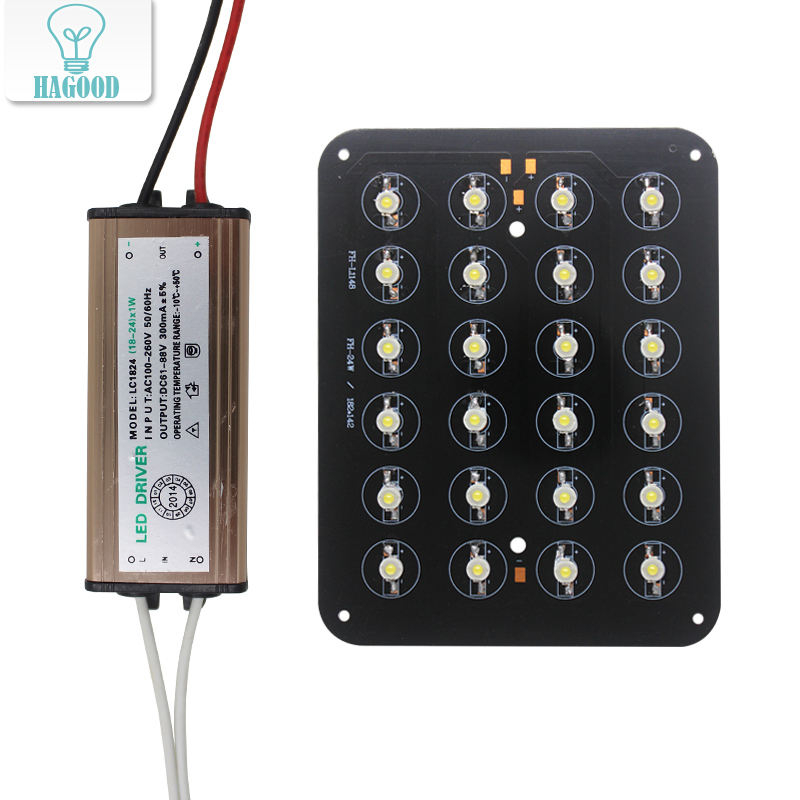

| 24W | 24 pcs | 182×142×5mm | 300mA±5% | AC 90-265V | DC 61-88V | 70×30×20mm | 2400-2640 |

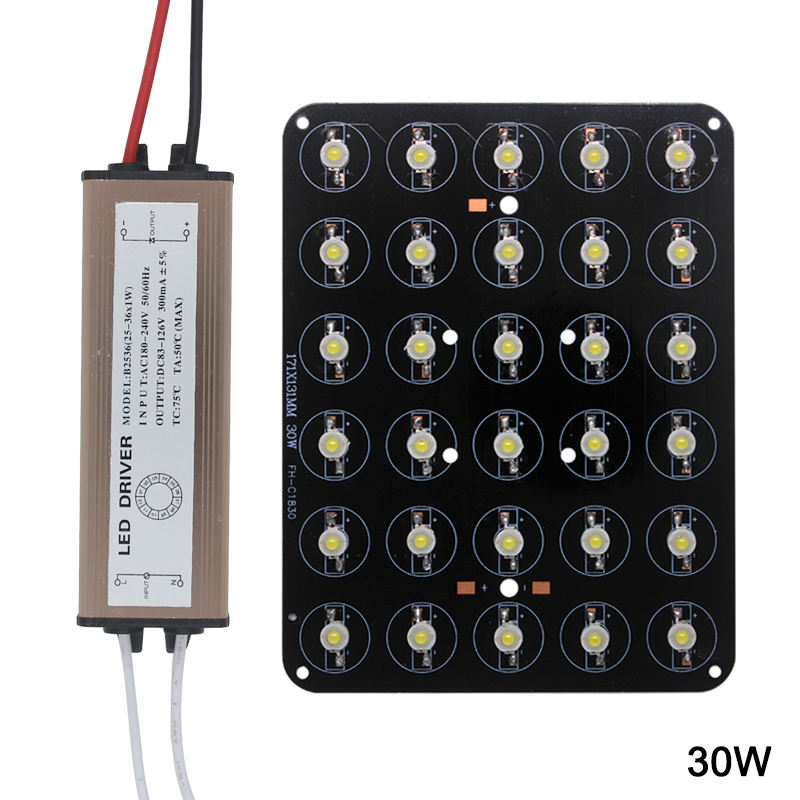

| 30W | 30 pcs | 171×131×5mm | 300mA±5% | AC 180-265V | DC 85-136V | 85×32×20mm | 3000-3300 |

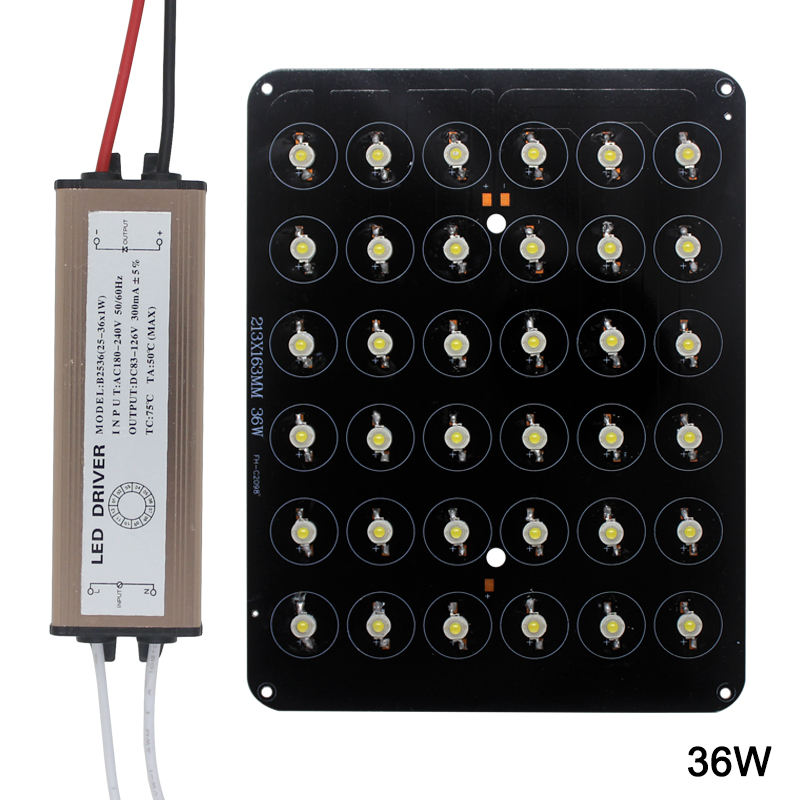

| 36W | 36 pcs | 213×163×5mm | 300mA±5% | AC 180-265V | DC 85-136V | 85×32×20mm | 3600-3960 |

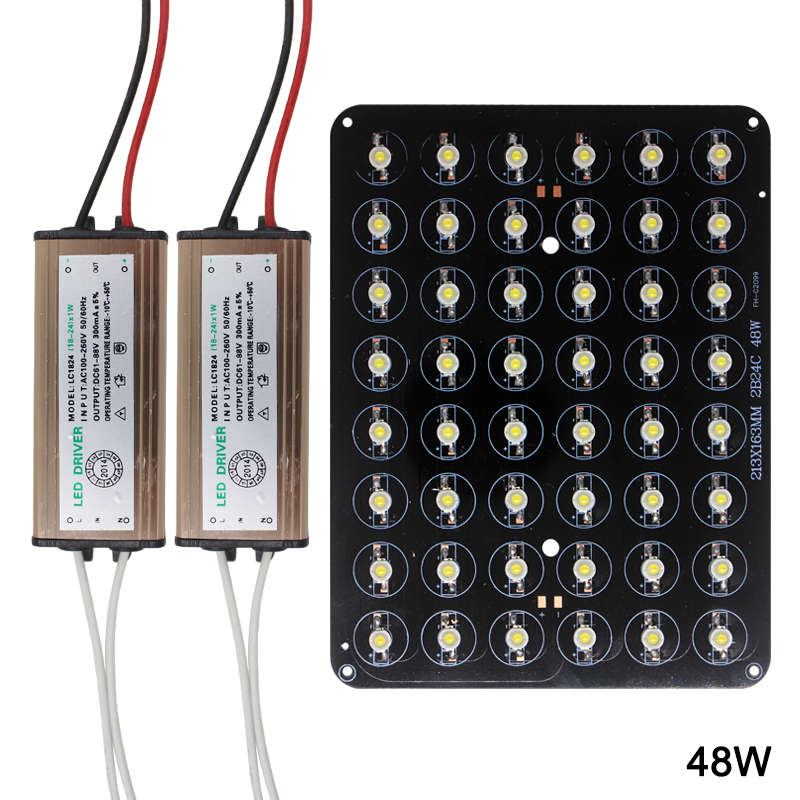

| 48W | 48 pcs | 213×163×5mm | 300mA±5% | AC 90-265V | DC 61-88V | 70×30×20mm | 4800-5280 |
